B+ daraxtga element qo'shish
B+ daraxtga element qo'shish uchta asosiy bosqichdan iborat: mos barg (leaf) tugunni qidirish, elementni kiritish va zarur hollarda daraxtni muvozanatlash / ikkiga bo'lish (splitting).
Keling, ushbu jarayonlarni batafsil tushunib olaylik.
B+ daraxtga element kiritishdan oldin quyidagi xususiyatlarni yodda tutish kerak:
m ta va kamida m / 2 ta farzandga ega bo'lishi mumkin.m - 1 ta kalit va kamida ⌈m / 2⌉ - 1 ta kalitni saqlashi mumkin.Element qo'shish uchun quyidagi qadamlar bajariladi:
Agar barg tugun to'lmagan bo'lsa, kalitni barg tugunga o'sish tartibini saqlagan holda kiriting.
Agar barg tugun to'lgan bo'lsa, quyidagi usulda daraxt muvozanatlanadi:
m / 2 pozitsiyasi bo'yicha ikkiga bo'ling (split).m / 2-chi kalit nusxasini ota (parent) tugunga ham qo'shing.Quyidagi rasmli misolda 5, 15, 25, 35, 45 elementlarini tartibi m = 4 bo'lgan B+ daraxtga kiritish jarayonini ko'rib chiqamiz:
5 ni kiritish:
5 ni kiritish
15 ni kiritish:
15 ni kiritish

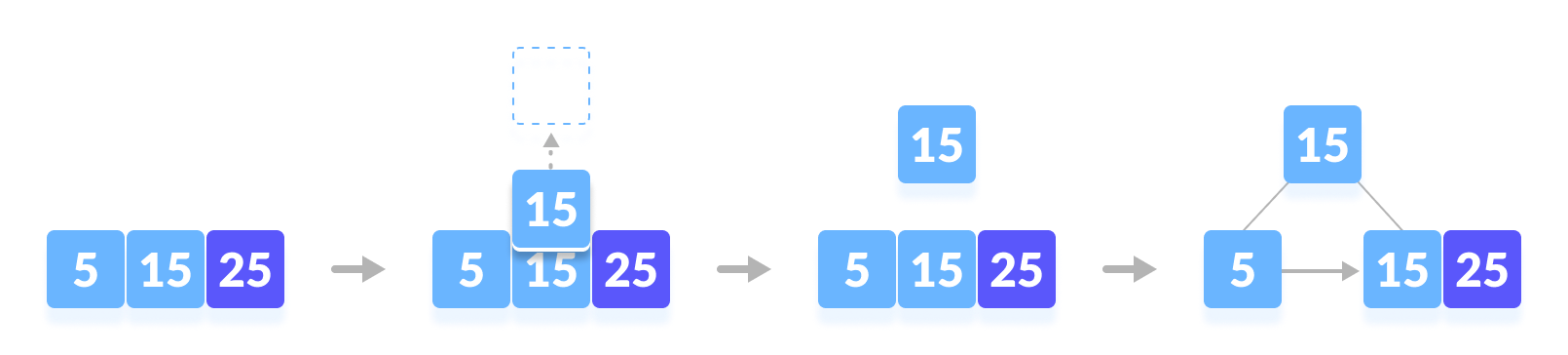

25 ni kiritish:
25 ni kiritish

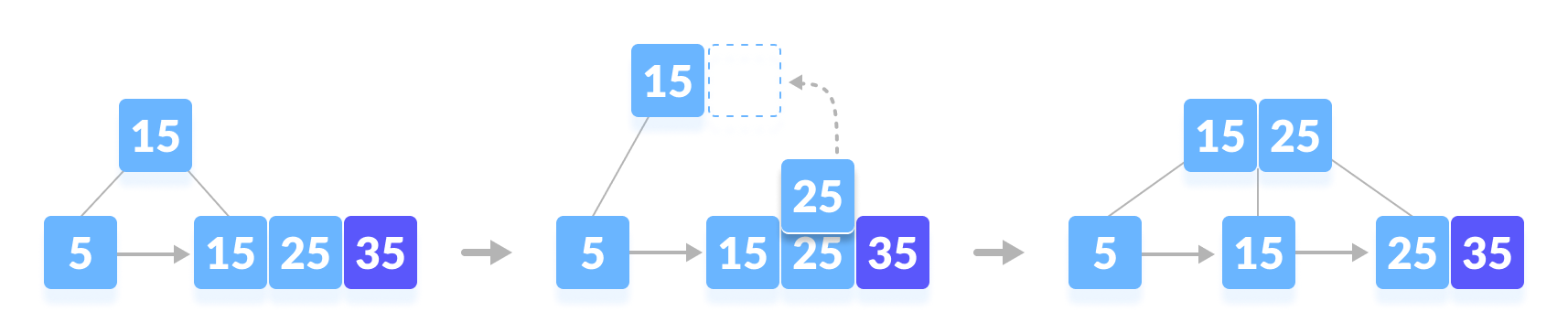

35 ni kiritish:
35 ni kiritish

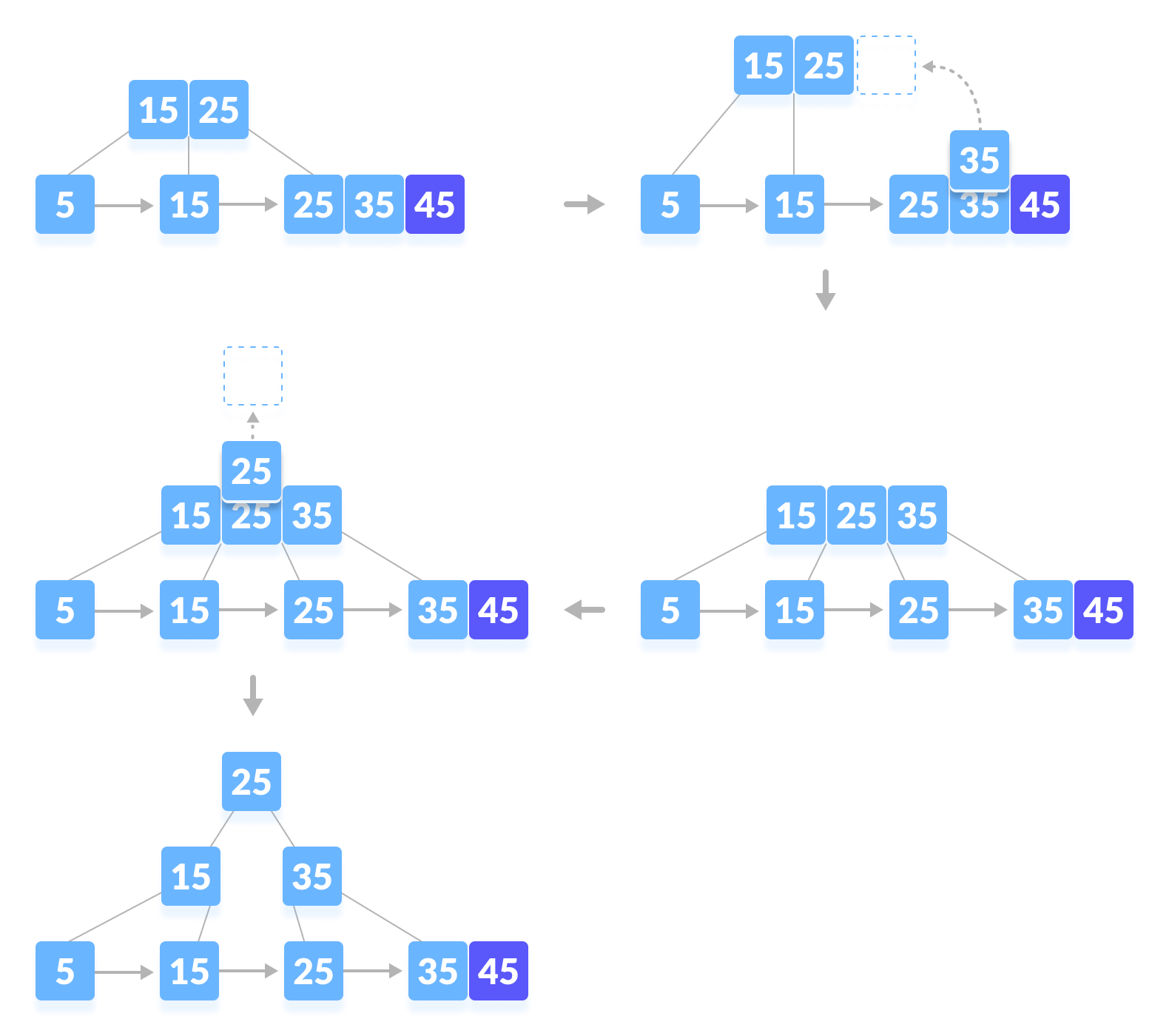

45 ni kiritish:
45 ni kiritish va tugunni bo'lish jarayoni
package main
import "fmt"
// BPNode B+ daraxt tugun strukturasi
type BPNode struct {
isLeaf bool
keys []int
children []*BPNode
next *BPNode // Barg tugunlar uchun bog'langan ro'yxat ko'rsatkichi
}
func newBPNode(isLeaf bool) *BPNode {
return &BPNode{
isLeaf: isLeaf,
keys: make([]int, 0),
children: make([]*BPNode, 0),
next: nil,
}
}
// BPlusTree strukturasi
type BPlusTree struct {
root *BPNode
order int // Har bir tugundagi maksimal farzandlar soni (m)
}
func NewBPlusTree(order int) *BPlusTree {
root := newBPNode(true)
return &BPlusTree{
root: root,
order: order,
}
}
// Search - B+ daraxtda kalitni qidirish
func (tree *BPlusTree) Search(k int) bool {
curr := tree.root
for !curr.isLeaf {
i := 0
for i < len(curr.keys) && k >= curr.keys[i] {
i++
}
curr = curr.children[i]
}
for _, key := range curr.keys {
if key == k {
return true
}
}
return false
}
// Insert - B+ daraxtga element qo'shish
func (tree *BPlusTree) Insert(k int) {
root := tree.root
if len(root.keys) == tree.order-1 {
newRoot := newBPNode(false)
newRoot.children = append(newRoot.children, root)
tree.splitChild(newRoot, 0, root)
tree.root = newRoot
tree.insertNonFull(newRoot, k)
} else {
tree.insertNonFull(root, k)
}
}
func (tree *BPlusTree) insertNonFull(node *BPNode, k int) {
if node.isLeaf {
idx := 0
for idx < len(node.keys) && node.keys[idx] < k {
idx++
}
if idx < len(node.keys) && node.keys[idx] == k {
return // Takroriy qiymat kiritilmaydi
}
node.keys = append(node.keys, 0)
for j := len(node.keys) - 1; j > idx; j-- {
node.keys[j] = node.keys[j-1]
}
node.keys[idx] = k
return
}
idx := 0
for idx < len(node.keys) && k >= node.keys[idx] {
idx++
}
child := node.children[idx]
if len(child.keys) == tree.order-1 {
tree.splitChild(node, idx, child)
if k >= node.keys[idx] {
idx++
}
}
tree.insertNonFull(node.children[idx], k)
}
func (tree *BPlusTree) splitChild(parent *BPNode, idx int, child *BPNode) {
mid := len(child.keys) / 2
promotedKey := child.keys[mid]
newNode := newBPNode(child.isLeaf)
if child.isLeaf {
newNode.keys = append(newNode.keys, child.keys[mid:]...)
child.keys = child.keys[:mid]
newNode.next = child.next
child.next = newNode
} else {
newNode.keys = append(newNode.keys, child.keys[mid+1:]...)
newNode.children = append(newNode.children, child.children[mid+1:]...)
child.keys = child.keys[:mid]
child.children = child.children[:mid+1]
}
parent.children = append(parent.children, nil)
for j := len(parent.children) - 1; j > idx+1; j-- {
parent.children[j] = parent.children[j-1]
}
parent.children[idx+1] = newNode
parent.keys = append(parent.keys, 0)
for j := len(parent.keys) - 1; j > idx; j-- {
parent.keys[j] = parent.keys[j-1]
}
parent.keys[idx] = promotedKey
}
// PrintLeaves - Barg tugunlar zanjirini chiqarish
func (tree *BPlusTree) PrintLeaves() {
curr := tree.root
for !curr.isLeaf {
curr = curr.children[0]
}
fmt.Print("B+ daraxt barglari (bog'langan ro'yxat): ")
for curr != nil {
for _, k := range curr.keys {
fmt.Printf("%d ", k)
}
curr = curr.next
}
fmt.Println()
}
func main() {
tree := NewBPlusTree(4) // order = 4
elements := []int{5, 15, 25, 35, 45, 55, 40, 30, 20}
for _, e := range elements {
tree.Insert(e)
}
tree.PrintLeaves()
for _, k := range []int{45, 15, 99} {
if tree.Search(k) {
fmt.Printf("Kalit %d: topildi\n", k)
} else {
fmt.Printf("Kalit %d: topilmadi\n", k)
}
}
}Θ(t * log_t n). Bu asosan mos barg tugunni qidirish vaqti Θ(log_t n) bilan belgilanadi.Θ(n).
